GENERATOR
2500W / 230-380V / 13 HP
KD106
PRODUCT TECHNICAL PARAMETERS
| Mark: | KRAFT&DELE |
| Model: | KD106 |
| Tension: | 380V/50Hz three-phase |
| Engine: | 4-stroke air-cooled |
| Number of sockets: | 1x 380V, 3x 230V / 1x 12V |
| Engine power: | 4.8 kW / 6.5 HP |
| Maximum generator power: | 2200W |
| Continuous power of the generator: | 2500W |
| Voltage regulator: | Yes |
| Start: | manual |
| Voltmeter: | Yes |
| Fuel gauge: | Yes |
| Maximum power on one phase: | approx. 730W (max. power divided by 3) |
| Fuel tank capacity: | 15L (approx. 12 hours of operation on the tank) |
| Copper generator: | Yes |
| Power supply: | unleaded petrol 95 |
| Materials: | stainless steel, aluminum, plastic |
| Mounted on shock-absorbing cushions: | Yes |
| Libra: | 41 kg |
KIT COMPOSITION:
• Keys x2
• Screwdriver
• Plug 3x 230V, 1x 400V
• Original packaging
• Receipt or invoice.
DESCRIPTION AND FEATURES OF THE PRODUCT

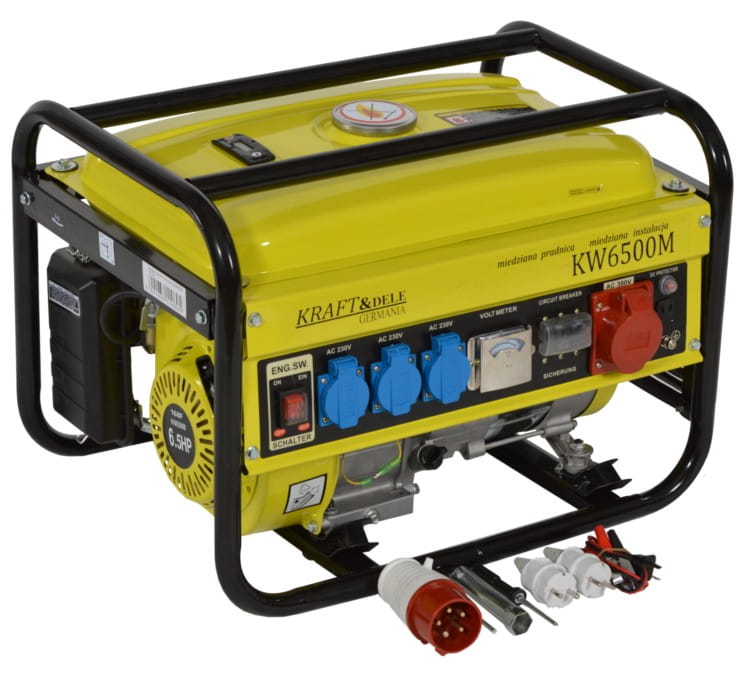

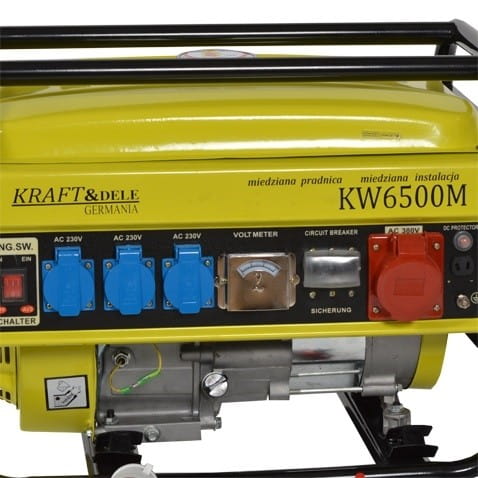

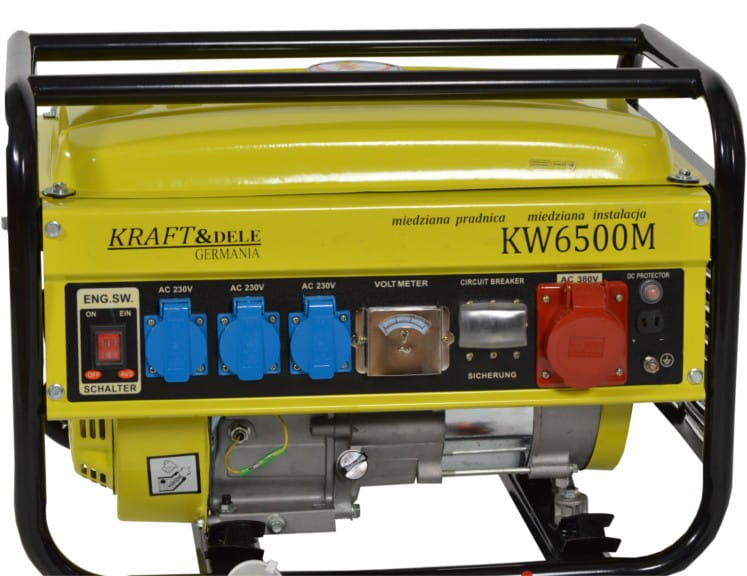

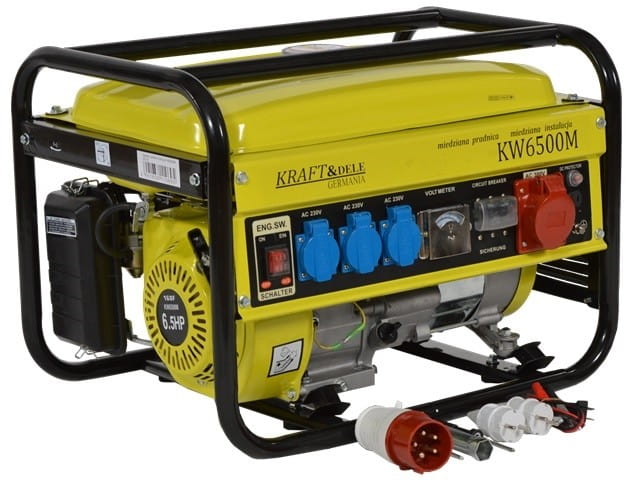

The KD106 portable three-phase power generator by Kraft&Dele is designed to generate 220V-380V alternating current using a 13KM 4-stroke OHV combustion engine of Japanese design and a 5200W generator.
This generator is ideal for construction sites, homes, summer homes, campsites , and anywhere else requiring a strong and stable power source. The generator's engine has a chrome-plated piston , ensuring quiet and smooth operation while also being very fuel-efficient.
Rubber stabilizers and engine mounts dampen vibrations and minimize noise. The generator is equipped with an additional electric starter, a voltmeter, a 12V output for battery charging, and a voltage regulator.
Sellers also add to their generators that they have an AVR - (voltage regulator), which is not true, generators at auctions have a voltage regulator, ours too.
Smart Throttle Technology (Speed Variation Control)
Unlike traditional generators that operate at a fixed speed/RPM, the KRAFT&DELE portable generator is equipped with a microprocessor controlled Smart Throttle Technology that adjusts the engine speed to precisely meet the load.
When the generator isn't powering multiple appliances, it runs at a lower RPM. This reduces fuel consumption, extending engine life and increasing the intervals between refills. As load increases, the generator automatically increases speed and RPM to meet energy demands.
We have a database of parts for our devices.
