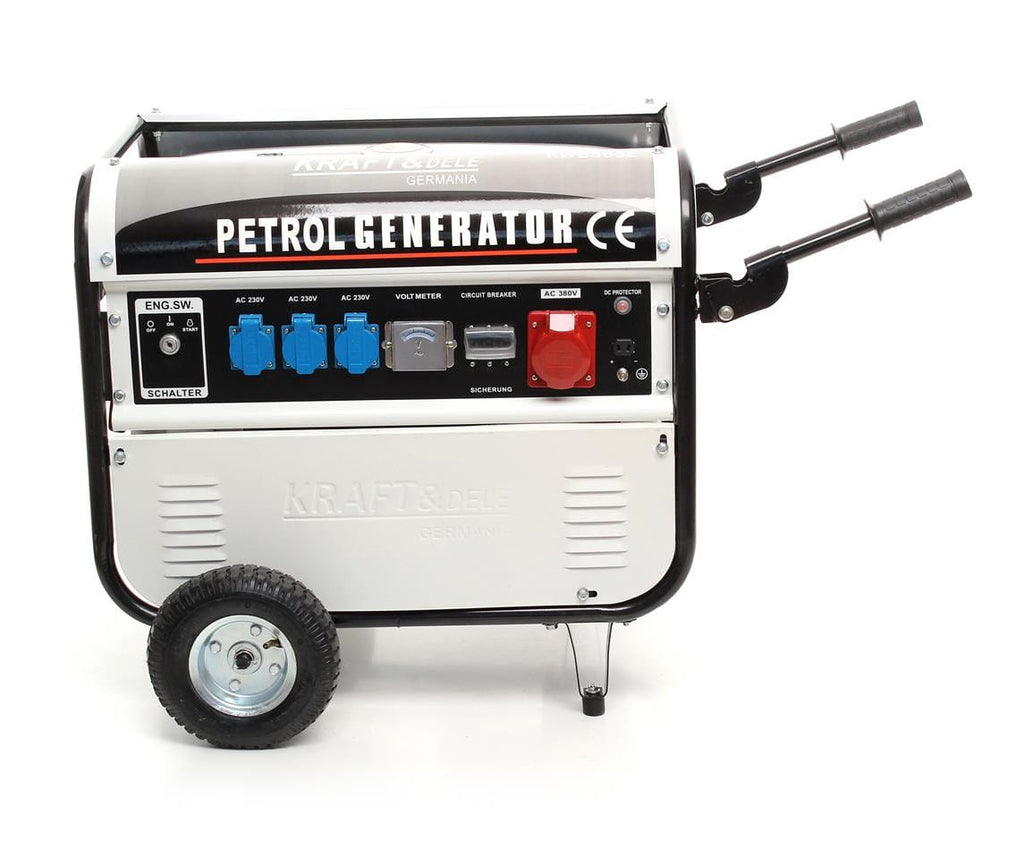

GENERATOR
5000W / 230-380V / 13 HP
KD108
PRODUCT TECHNICAL PARAMETERS
| Mark: | KRAFT&DELE |
| Model: | KD108 |
| Tension: | 380V/50Hz three-phase |
| Engine: | 4-stroke air-cooled |

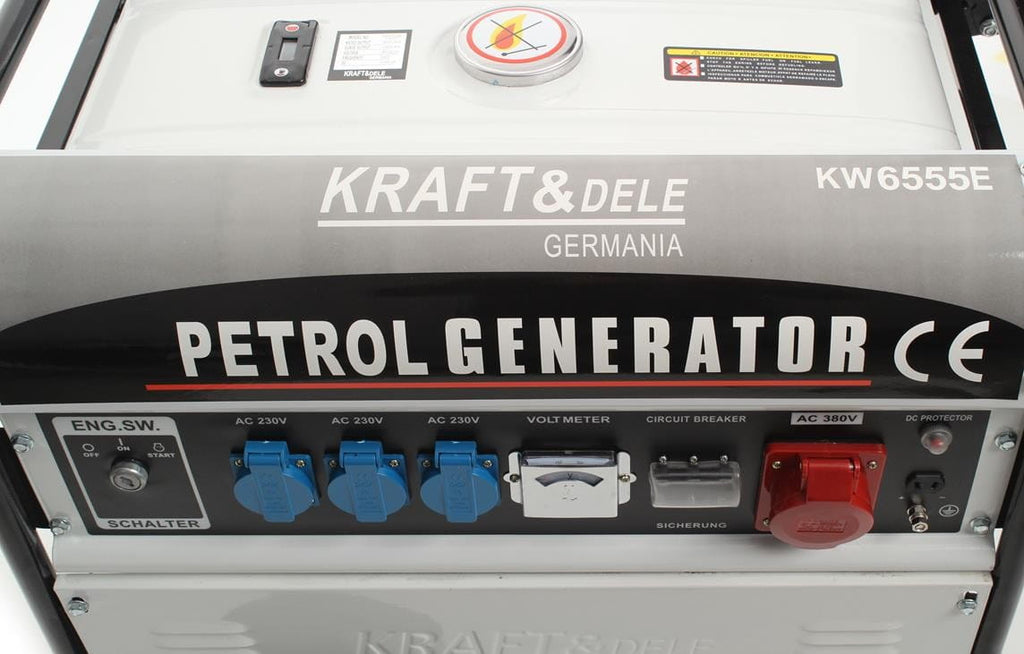

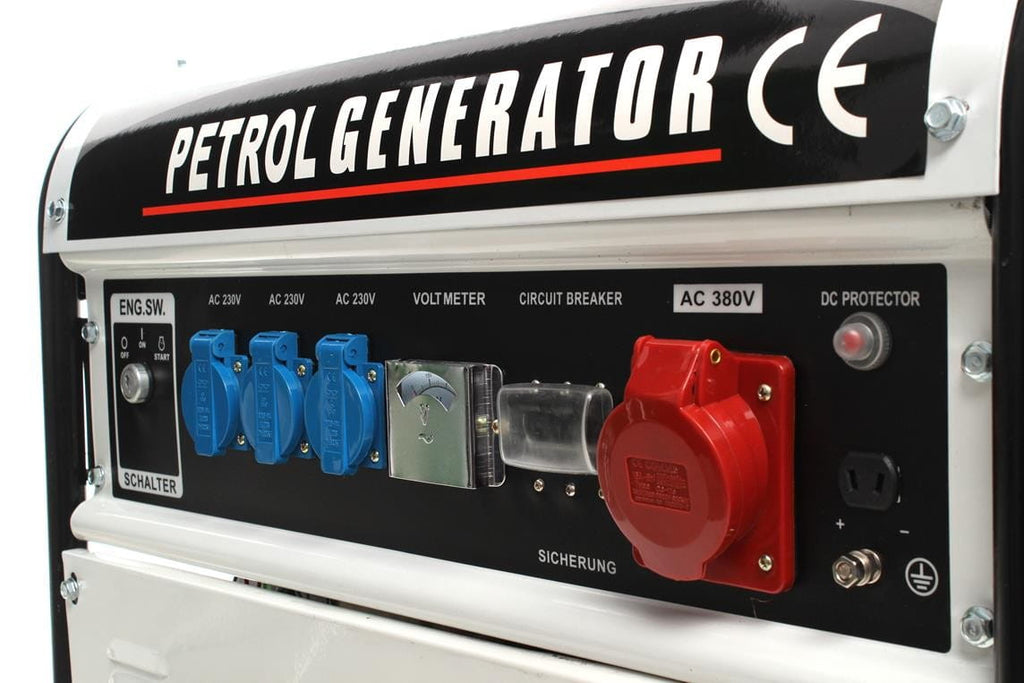

| Number of sockets: | 1x 380V, 3x 230V / 1x 12V |
| Engine power: | 4.8 kW / 6.5 HP |
| Maximum generator power: | 5200W |
| Continuous power of the generator: | 5000W |
| Voltage regulator: | Yes |
| Start: | manual + electric key |
| Voltmeter: | Yes |
| Fuel gauge: | Yes |
| Maximum power on one phase: | approx. 2000W (max. power of 3 phases divided by 3) |
| Fuel tank capacity: | 25L (approx. 12 hours of operation on the tank) |

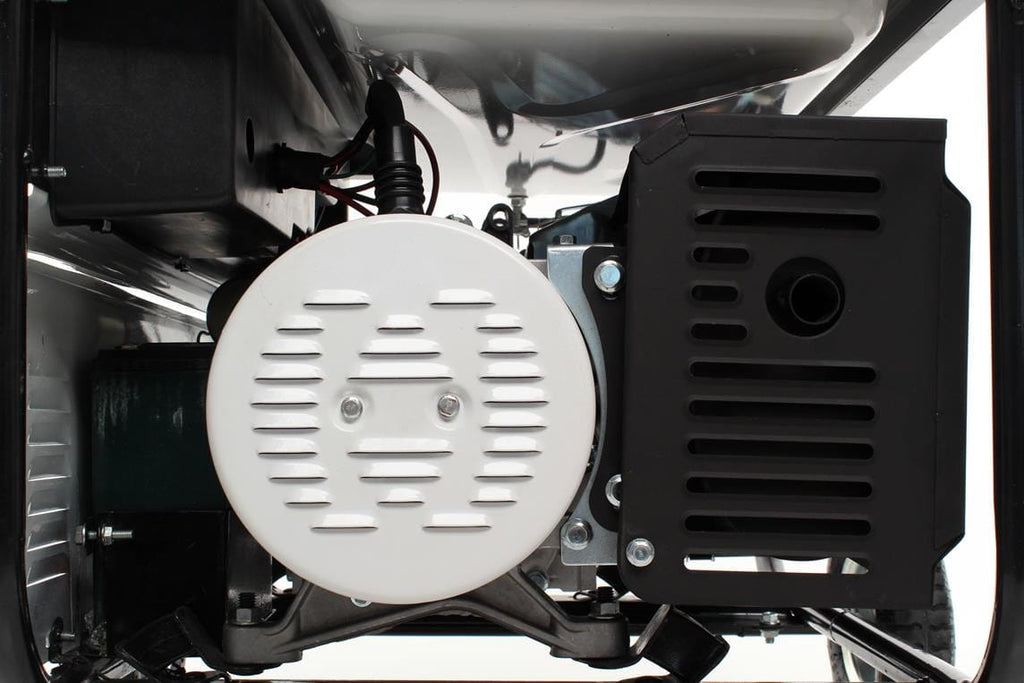

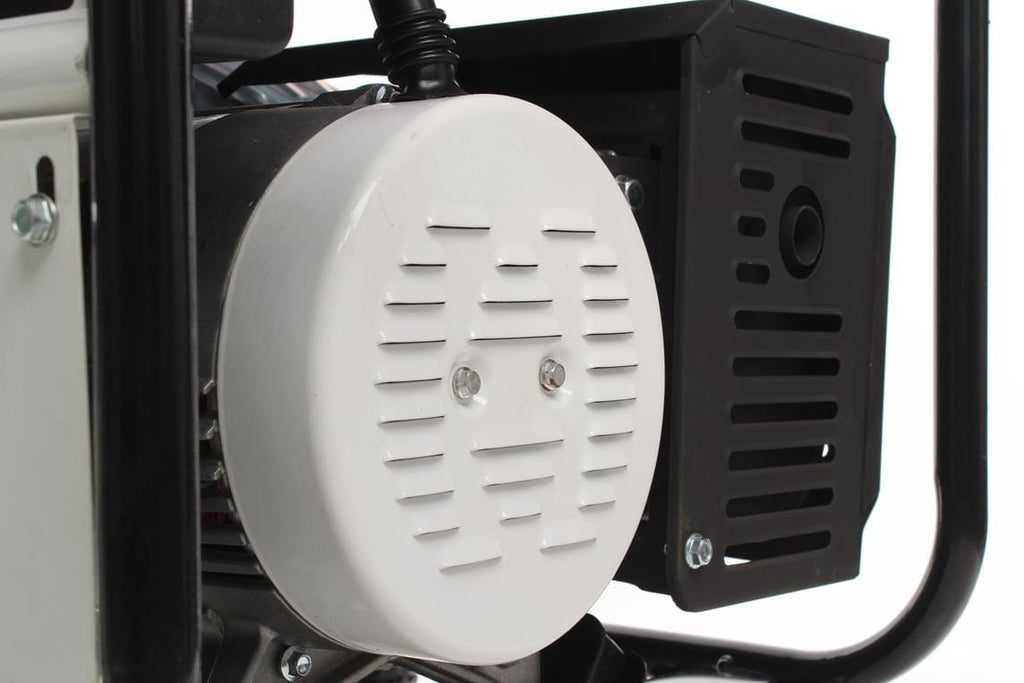

| Copper generator: | Yes |
| Power supply: | unleaded petrol 95/98 |
| Materials: | stainless steel, aluminum, plastic |
| Mounted on shock-absorbing cushions: | Yes |
| Libra: | 80 kg |
KIT COMPOSITION:
• 12V battery charging cables
• Plug 3x 230V, 1x 380V
• Electric start keys
• Original packaging
• Receipt or invoice.
DESCRIPTION AND FEATURES OF THE PRODUCT

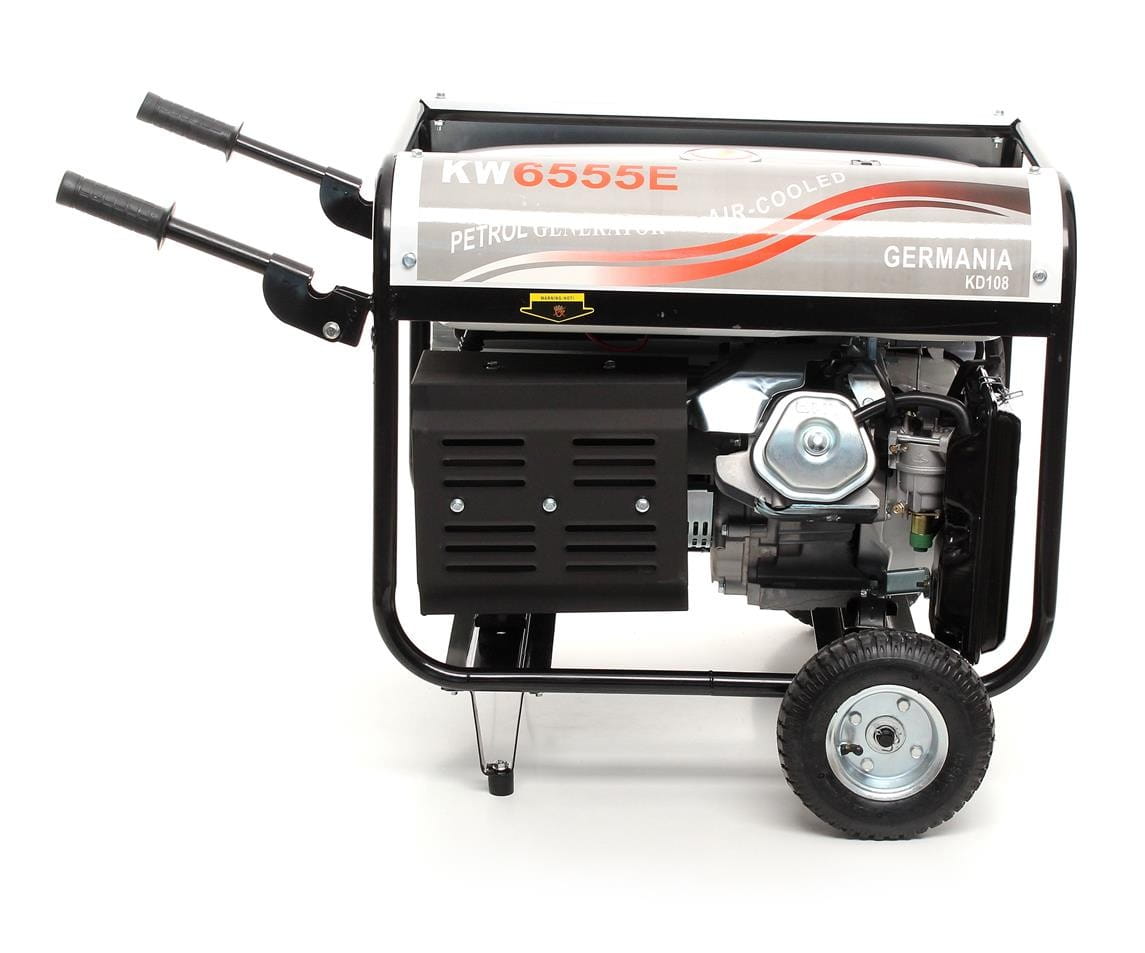

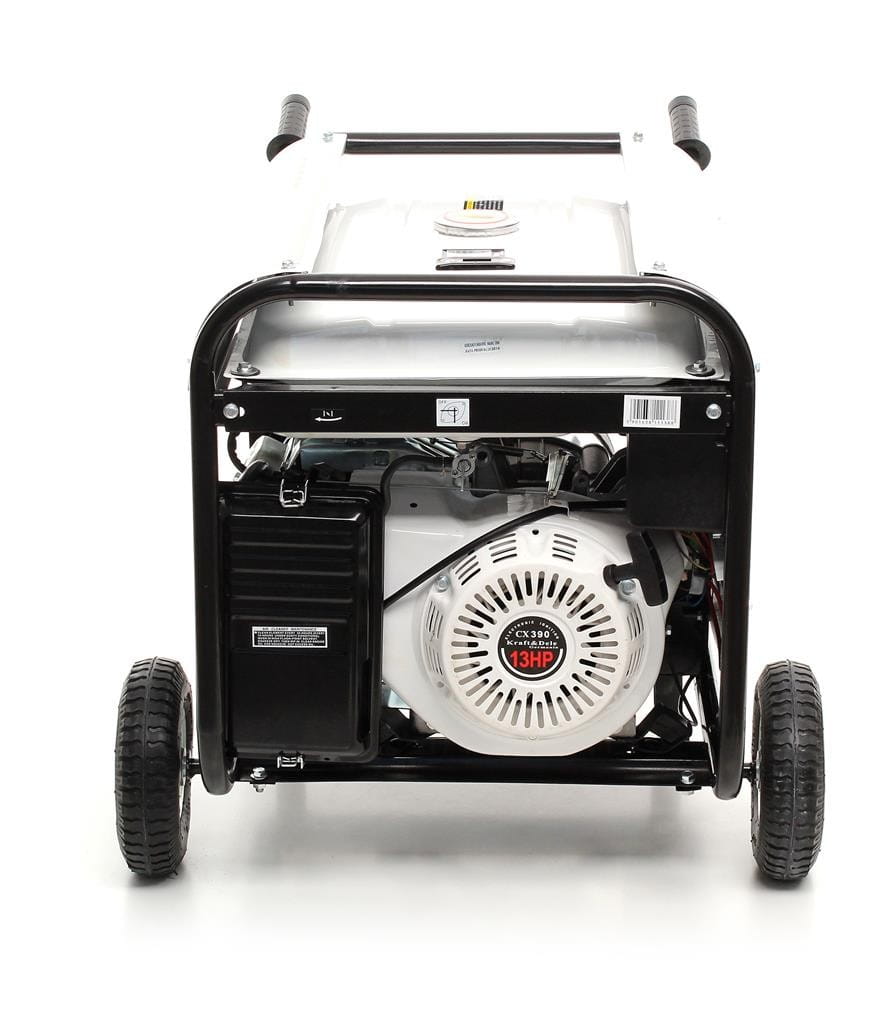

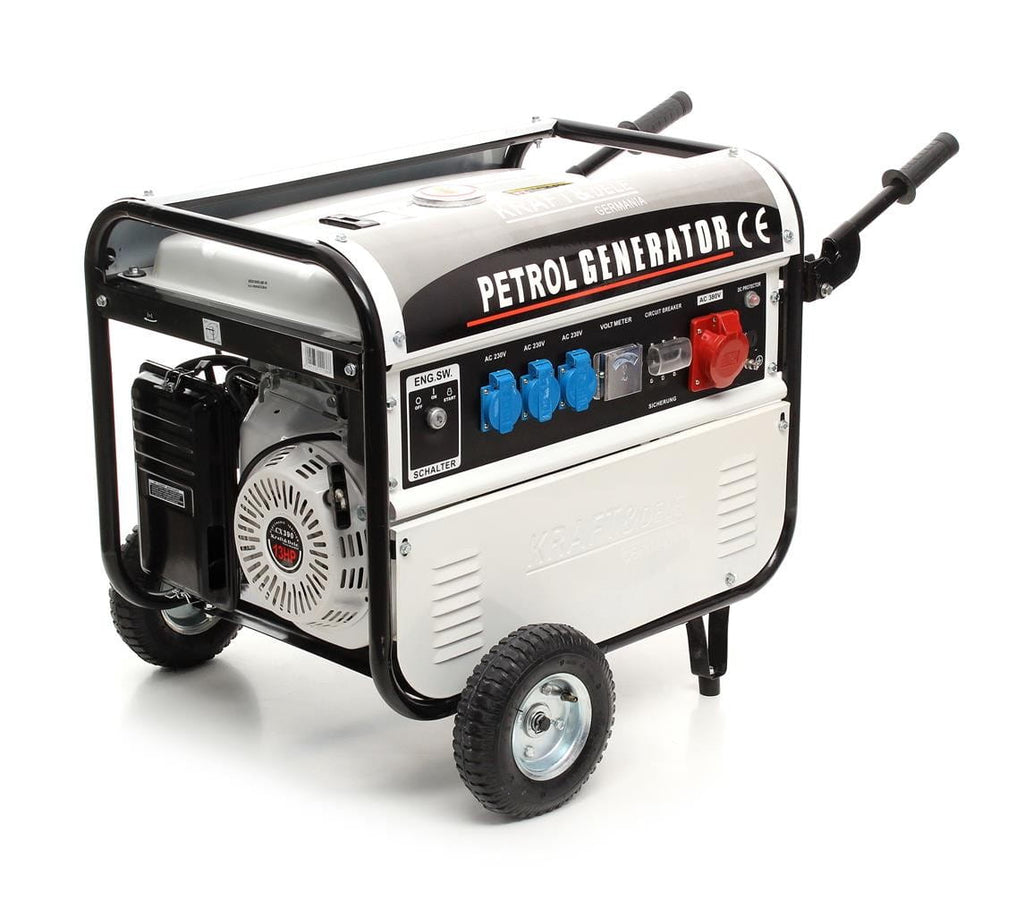

The KD108 portable three-phase power generator by Kraft&Dele is designed to generate 220V-380V alternating current using a 13KM OHV 4-stroke combustion engine of Japanese design and a 5200W generator.
This generator is ideal for construction sites, homes, summer homes, campsites , and anywhere else requiring a strong and stable power source. The generator's engine has a chrome-plated piston , ensuring quiet and smooth operation while also being very fuel-efficient.

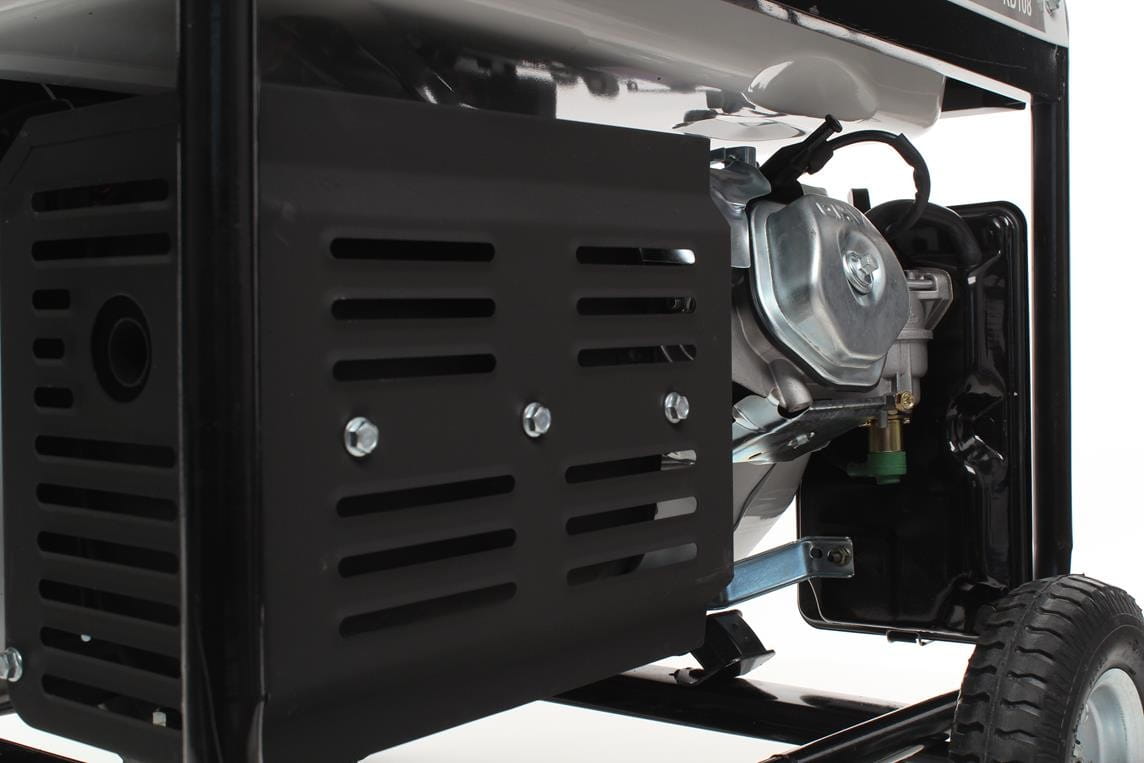

Rubber stabilizers and engine mounts dampen vibrations and minimize noise. The generator is equipped with an additional electric starter, a voltmeter, a 12V output for battery charging, and a voltage regulator.
Sellers also add to their generators that they have an AVR - (voltage regulator), which is not true, generators at auctions have a voltage regulator, ours too.
Smart Throttle Technology (Speed Variation Control)
Unlike traditional generators that operate at a fixed speed/RPM, the KRAFT&DELE portable generator is equipped with a microprocessor controlled Smart Throttle Technology that adjusts the engine speed to precisely meet the load.
When the generator isn't powering multiple appliances, it runs at a lower RPM. This reduces fuel consumption, extending engine life and increasing the intervals between refills. As load increases, the generator automatically increases speed and RPM to meet energy demands.
